Electrode Boiler
Capacity: 4MW-80MW（3-68Million Kcal）
Applicable Fuels: Electricity
Application Industries: Power plants, Heating, Chemical, etc.

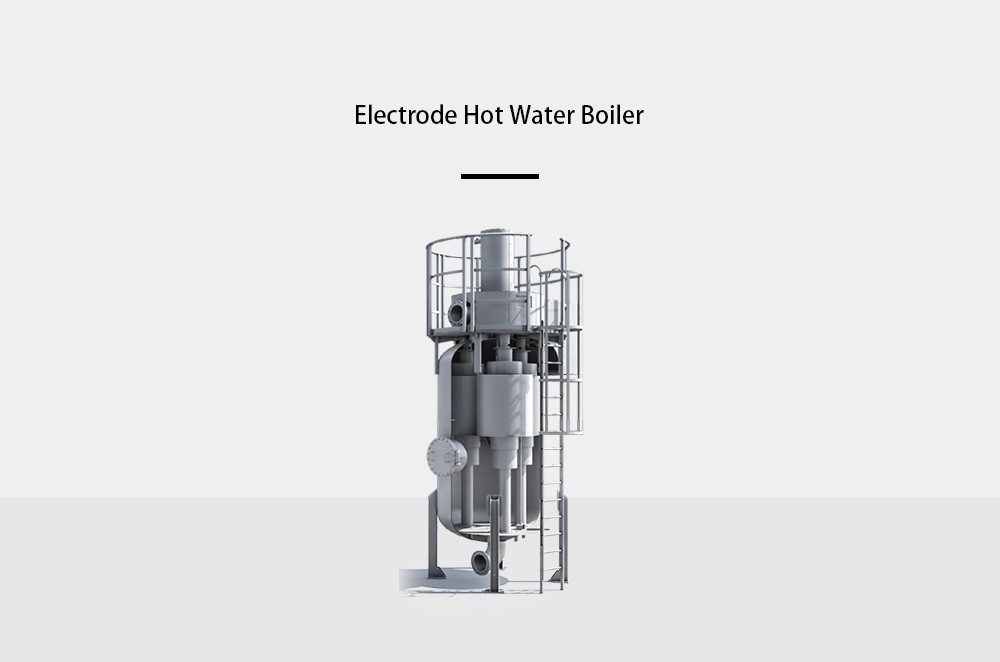

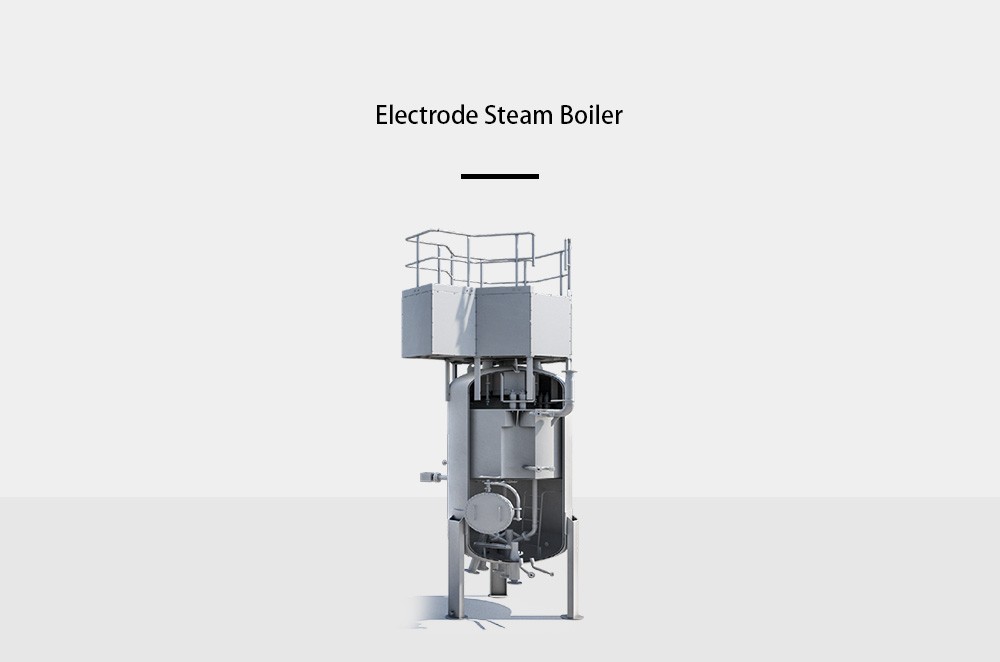

Xianchuang electrode boilers are divided into high-pressure electrode steam boilers and high-pressure electrode hot water boilers, featuring high safety, high reliability, and high thermal efficiency.
For more information about this boiler model, please contact us!

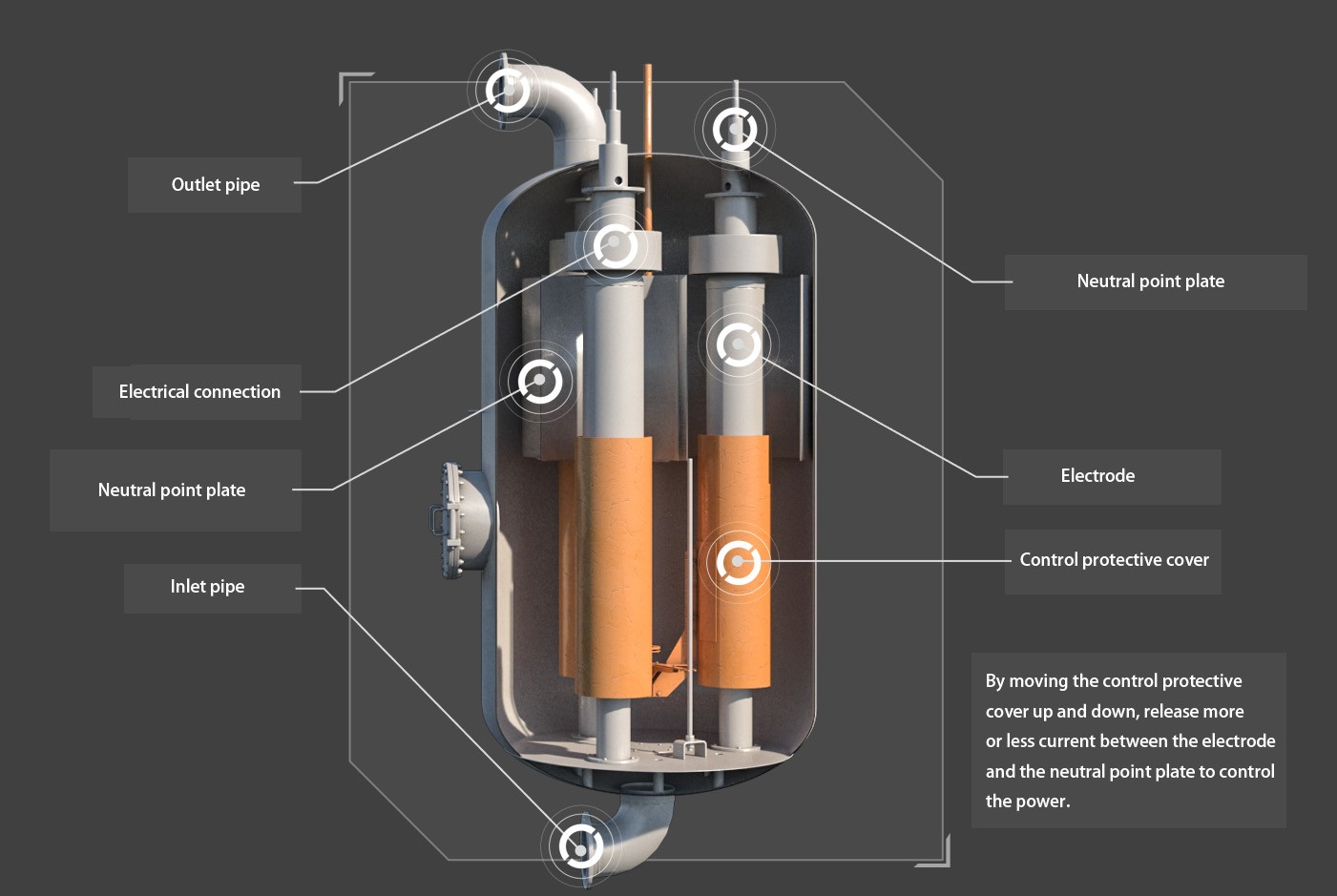

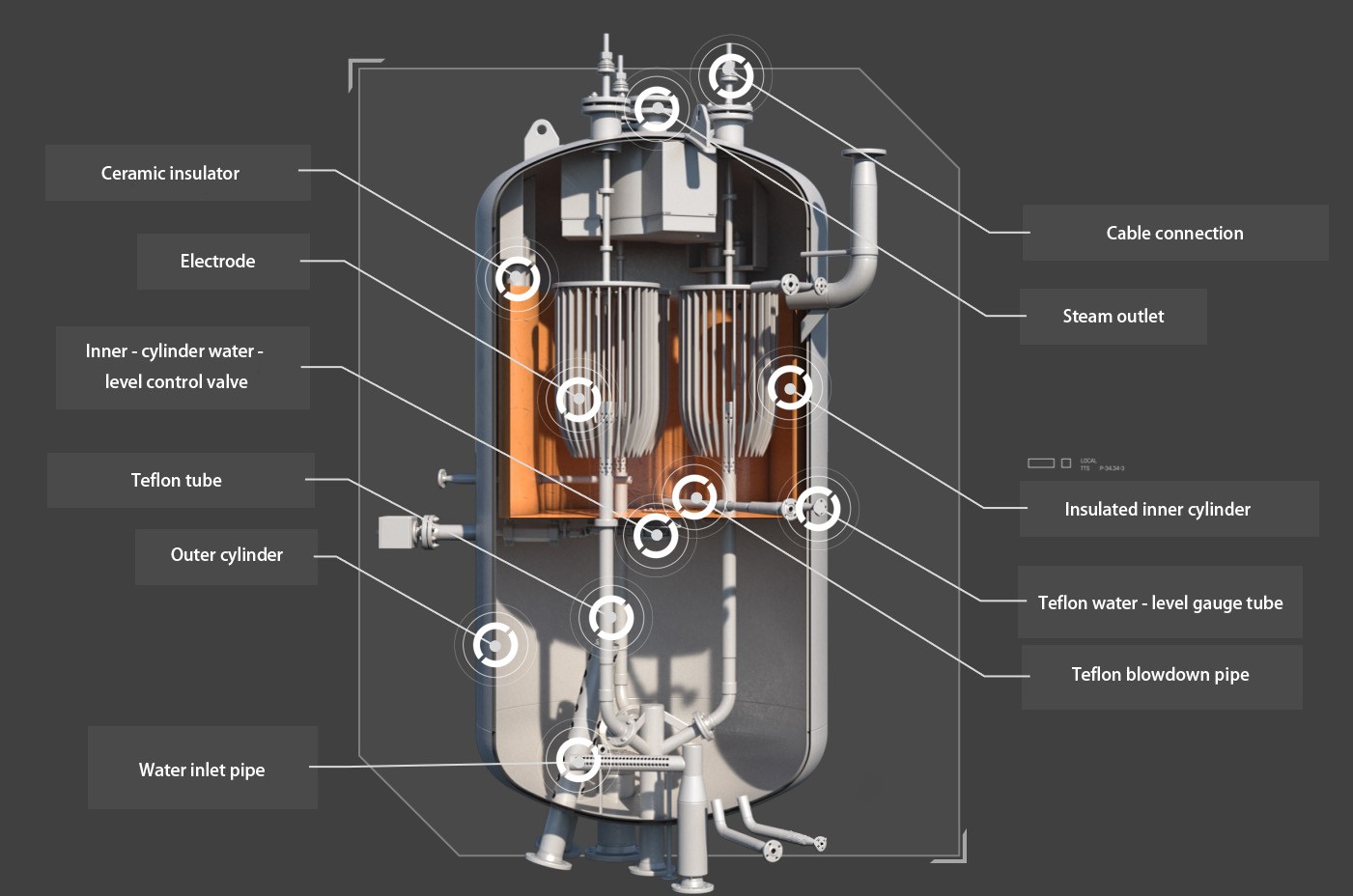

Electrode boilers immerse high-voltage electrodes in water with a certain conductivity, utilising the water's conductivity and high thermal resistance properties to directly convert electrical energy into thermal energy, thereby producing hot water and achieving heating functionality. Xianchuang electrode boilers are divided into high-voltage electrode steam boilers and high-voltage electrode hot water boilers, featuring high safety, reliability, and thermal efficiency.
① High safety Low conductivity operation, no explosion hazard. There has been no safety accident for nearly a hundred years. ② High thermal efficiency High efficiency conversion of electrical energy into thermal energy, almost no heat loss, the boiler thermal efficiency is as high as 99.8% or more. ③ Short start-up time The hot water boiler can reach 100% load within 30 seconds, and the steam boiler can reach 100% evaporation within 3 to 5 minutes in hot standby state. ④ High reliability and low maintenance rate The boiler has a design life of more than 60 years, and low maintenance and maintenance costs. |
|
| Model | Rated Power | Boiler Dimensions （mm）(A×B×C) | |
| Design Temperature 130℃(-6) | Design Temperature 175℃(-12) | ||
| ETHH8Mi(d) | 4-8 | 3000×3600×5000 | 3400x4000x5300 |
| ETHH12Mi(d) | 9-12 | 3050x 3600 x5500 | 3450x4000x5800 |
| ETHH20Mi(d) | 13-20 | 3050x 3600x6800 | 3450x4000x7100 |
| ETHH40Mi(d) | 21-40 | 3850x4400x7300 | 4250x4800x7600 |
| ETHH60Mi(d) | 41-60 | 5650x5800x8760 | 6050x6200x9000 |
| ETHH80Mi(d) | 61-80 | ||
Note: This table displays parameters for Apani high-voltage electrode hot water boilers. For other models of electrode boilers, please navigate to the corresponding webpage or contact customer service.
