Thermal Efficiency: ≥99.8%
Operating Temperature: 130/170℃
Applicable Fuel: Electricity
Applications: hotels , shopping malls, military facilities, etc.

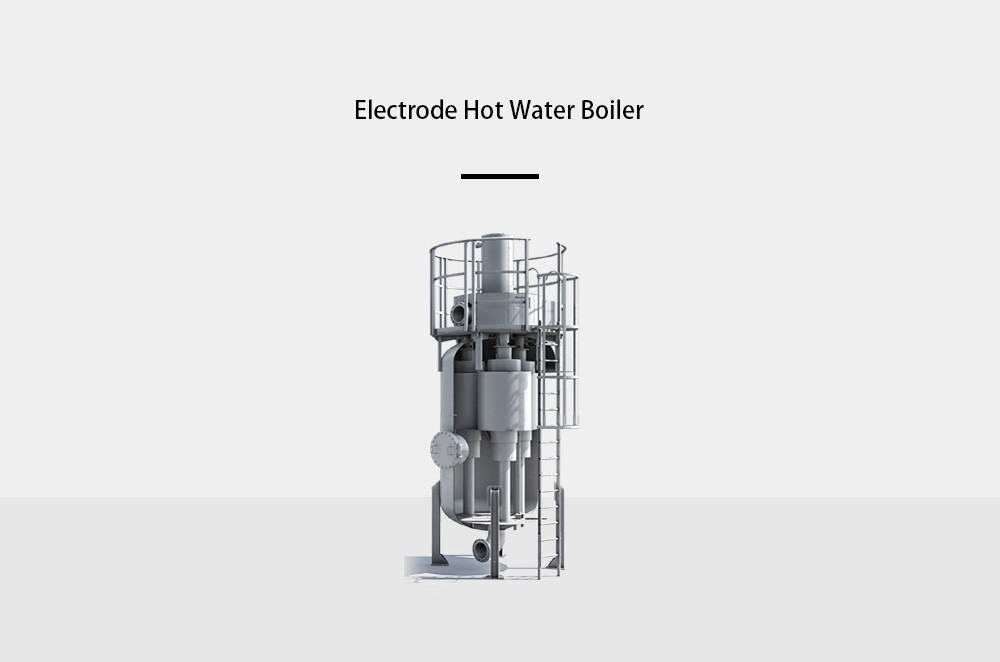

An electrode boiler operates by immersing high-voltage electrodes in water of specific conductivity, utilizing water's conductive properties and high thermal resistance
characteristics to directly convert electrical energy into thermal energy. This process generates hot water to achieve heating functions.
| Model | Rated Power | Boiler Dimensions （mm）(A×B×C) | |
| Design Temperature 130℃(-6) | Design Temperature 175℃(-12) | ||
| ETHH8Mi(d) | 4-8 | 3000×3600×5000 | 3400×4000×5300 |
| ETHH12Mi(d) | 9-12 | 3050×3600×5500 | 3450×4000×5800 |
| ETHH20Mi(d) | 13-20 | 3050×3600×6800 | 3450×4000×7100 |
| ETHH40Mi(d) | 21-40 | 3850×4400×7300 | 4250×4800×7600 |
| ETHH60Mi(d) | 41-60 | 5650×5800×8760 | 6050×6200×9000 |
| ETHH80Mi(d) | 61-80 | ||
