Capacity: 4.2-17.5t/h
Working Pressure: 1-1.25Mpa
Operating Temperature: 95/70℃，115/70℃，130/70℃
Application Industries: Heating,Shool,Hotel,ect.
Product Introduction and Feature

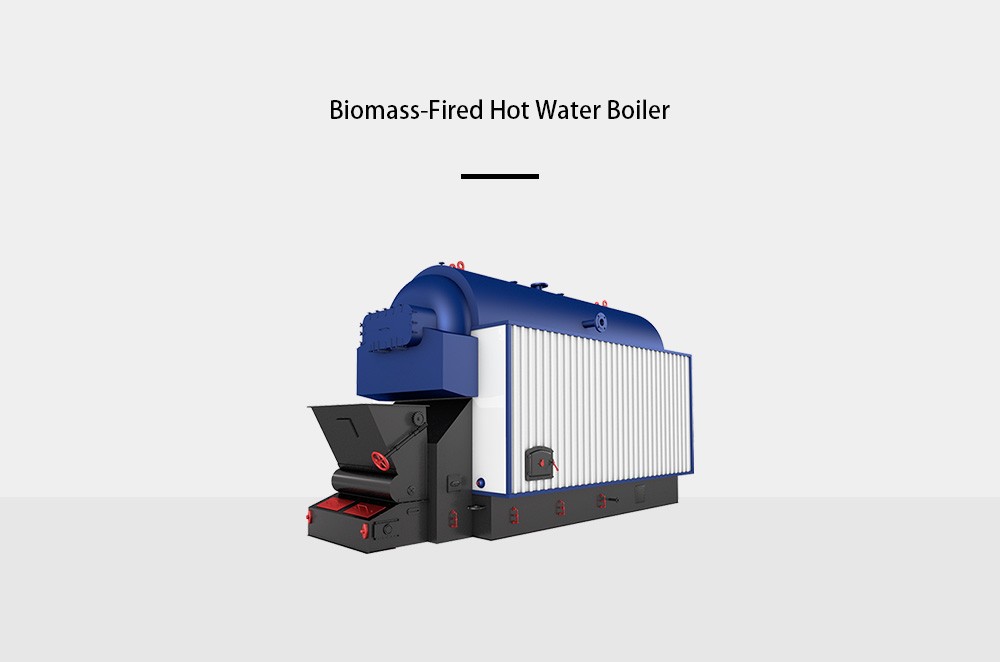

The biomass hot water boiler is an eco-friendly heating system that runs on renewable fuels like biomass pellets, wood chips, and straw. With high-
efficiency combustion, it delivers excellent thermal performance, low emissions, and stable operation, ideal for centralized heating and industrial hot
water supply.
| Boiler model | CWHL2.8-85/60-S | CWHL3.5-85/60-S | CWHL4.2-85/60-S | CWHL4.9-85/60-S | CWHL5.6-85/60-S | CWHL7.0-85/60-S |
| Thermal power (MW) | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 7 |
| Heat generation (10000 kcal) | 240 | 300 | 360 | 420 | 480 | 600 |
| Inlet and outlet diameter | 150 | 200 | 250 | 250 | 250 | 300 |
| Maximum fuel consumption(kg/h) | 600 | 750 | 900 | 1050 | 1200 | 1500 |
| Equipment size | 5000X2050X2700 | 6000X2150X2800 | 6500X2400X2950 | 7000X2400X3000 | 7500X2600X3200 | 9500X3400X3600 |
| (mm) | ||||||
| Equipment weight(T) | 10.5 | 12.35 | 15.5 | 19.5 | 22.8 | 26.5 |
